PRODUCT LIST
| Application | Soil Preparation Machinery | |
| Feature | ★Light and small, very convenient for moving into the field even without a road, and can work in extremely small spaces between rows; ★Multi functional, rotary tillage, weeding, and trenching etc; ★Hand operated air filter with good air filtration effectly prolong engine lifespan; ★Reinforced gearbox, sturdy and stable also durable. Can be used for crops. | |
| Specification | |||

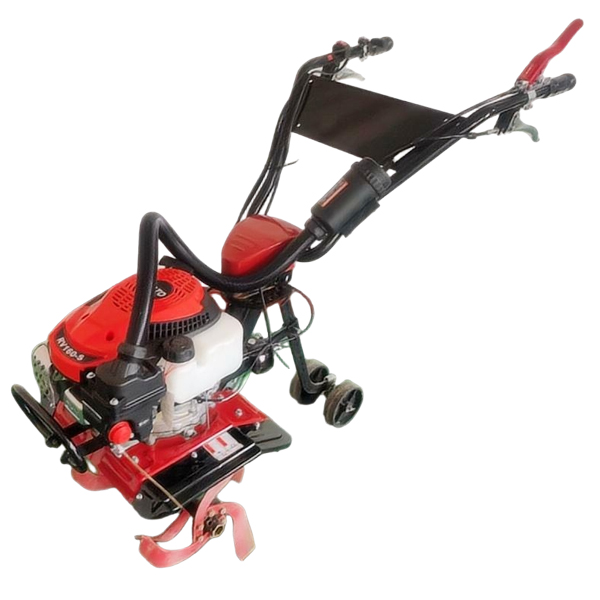

| 1 | Product | / | POWER TILLER |
| 2 | Model | / | 1WGQ2.8-40 |
| 3 | Type | / | Walking Typle |
| 4 | Overall Dimension ( L×W×H ) | mm | 1330×540×940 |
| 5 | Weight | kg | 30 |
| 6 | Productivity of Operating Hours | hm²/h | 0.01～0.03 |
| 7 | Engine Model | / | RV160-S |
| 8 | Rated Power | kw | 2.8 |
| 9 | Engine Type | / | Gasoline Engine |
| 10 | Rated Rotation Speed | r/min | 3600 |
| 11 | Engine Start Method | / | Manual starter |
| 12 | Engine Output Method | / | Gear Drive |
| 13 | Knife Roller transmission method | / | Gear Drive |
| 14 | Knife Roller Rotation Speed | r/min | 240 |
| 15 | Knife Roller Radius | mm | 145 |
| 16 | Knife Quantity | / | 12 |
| 17 | Knife Type | / | Knife Disc Type |
| 18 | Main Clutch Type | / | Friction Plate |
| 19 | Main Clutch Status | / | Normally Open |
| 20 | Working Width | mm | 435 |
