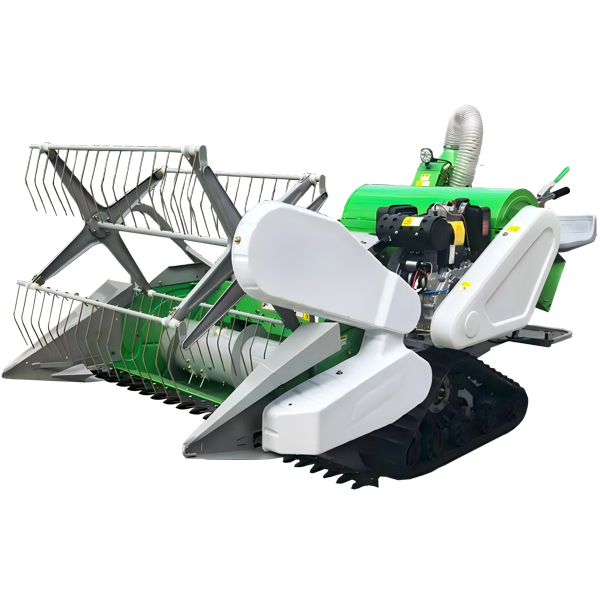

4LZ-1.0D MINI COMBINE HARVESTER

Application	Rice Wheat and other granular crops.
Feature	This mini combine harvester is a versatile, maneuverable agricultural machine designed for efficient harvesting in challenging terrains like mountainous regions, islands, and small irregular plots. Its compact size and lightweight design allow easy access to confined spaces while maintaining high performance in rice, wheat, and other grain crops. Fully-functioning cutting threshing, cleanning, unloading, it is manpower saved and efficiency improved mini harvester.

Product Parameters

Specification
1	Product	/	MINI COMBINE HARVESTER
2	Model	/	4LZ-1.0D
3	Type	/	Full-Feed, Self-Propelled, Riding Type, Track Combine
4	Overall Dimension ( L×W×H )	mm	3100×1500×1650
5	Weight	kg	495
6	Productivity of Operating Hours	hm²/h	≥0.06
7	Engine Model	/	192, 1100
8	Rated Power	kw/hp	7.5KW/10HP, 9.8KW/13.3HP
9	Engine Type	/	Vertical, Four-Stroke, Air-Cooled, Gasoline Engine.
10	Rated Rotation Speed	r/min	3600
11	Type of Gearbox:	/	Mechanical Stepped Transmission 4 (Slow,Fast,Empty,Backward)
12	Rubber Track	mm	250 x 66 x 37
13	Gauge	mm	645
14	Minimum Ground Clearance	mm	180
15	Cutting Width	mm	1100
16	Pickup Reel	/	Eccentric Tooth(off-centre),D730mm Qty 4
17	Threshing System	r/min	Spiked Tooth Axial Flow
18	Cylinder Diameter×Length	mm	360 × 890
19	Cleaning Mechanism Type	/	Air and Screen Cleaning
20	Grain Storing	/	Small Tank by Manual Bagging
