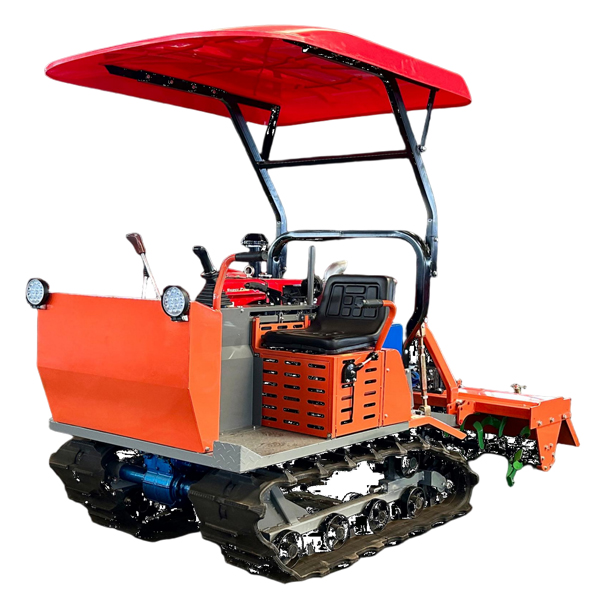

1GZL-130 CRAWLER TRACTOR / ROTARY CULTIVATOR
Product Introduction
Welcome to our official website!
Welcome to our official website!
PRODUCT LIST
| Specification | ||||
| 1 | Product | / | CRAWLER TRACTOR / ROTARY CULTIVATOR | |
| 2 | Model | / | 1GZL-130 | |
| 3 | Type | / | Self-Propelled, Crawler Tractor,Rotary Cultivator. | |
| 4 | Overall Dimension ( L×W×H ) | mm | 2900×1320×1450 | |
| 5 | Weight | kg | 1050 | |
| 6 | Productivity of Operating Hours | hm²/h | 0.25～0.35 | |
| 7 | Engine Model | / | AM35NM | |
| 8 | Rated Power | kw/hp | 24KW/35HP | |
| 9 | Engine Type | / | Water-Cooled, Single-Cylinder, Diesel Engine. | |
| 10 | Rated Rotation Speed | r/min | 2200 | |
| 11 | Type of Gearbox: | / | Mechanical Manual | |
| 12 | Rubber Track | mm | 350 x 90 x 38 | |
| 13 | Gauge | mm | 800 | |
| 14 | Minimum Ground Clearance | mm | 295 | |
| 15 | Rear Mounted Implements Type | / | Three-point Linkage | |
| 16 | Implements Category | / | Categories 2 | |
| 17 | PTO Rotating Speed | r/min | 580 | |
| 18 | Working Width | mm | 1250 | |
| 19 | Type of Kinfe | / | IT195 | |
| 20 | Quantity of Kinfe | / | 28 | |
| 21 | Driving Type | / | Middle Gear Driving | |
